WINLET 575
Winlet 575 is the smallest of the fully hydraulic window and glass lifts.
Load capacity: <575 kg
Positioning: vertical, horizontal, 360°
 |
GLASS |
 |
| STONE |
 |
| METAL |
 |
 |
 |
 |
 |

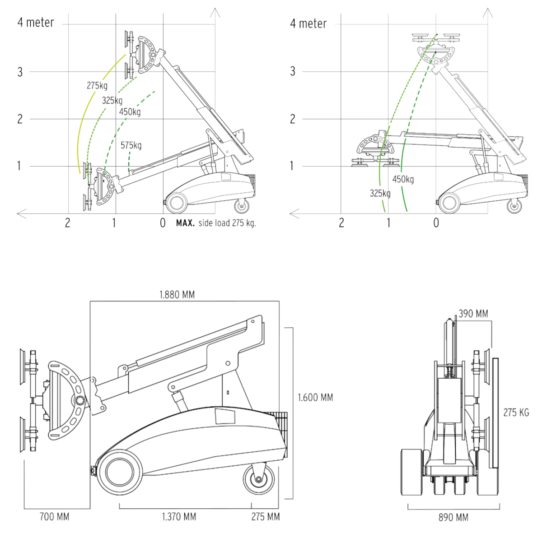

TECHNICAL TABLE
Max. load capacity: 575 kg.
Own weight: 1300 kg.
Maximum lift height: 3900 mm.
– with horizontal load
Width: 890 mm.
Hydraulic side shift: 75 mm.
Hydraulic precision lift: 200 mm.
Front rotation: 360 °
Battery: 2 x 150 Ah
WINLET 575 ADVANTAGES
Gyroscopic function that automatically holds the glass in the same position when the element is lifted by the main lever.
Movement control with millimetre precision using a unique cable control that also controls the activation/deactivation of the vacuum suction.
The Winlet 575 window lifter has been the equipment of choice for professional glaziers/window fitters and rental companies for many years.
Lifts all sealed objects, the Winlet 575 can be easily converted to lift many other materials besides windows and glass.
Different types of suction cups that are easily mounted on the existing front. This makes the Winlet 575 ideal for: granite, tiles, plasterboard, concrete elements, aerated concrete, wood-fiber panels, steel plates and fire doors.
