AERO-WINDOW
Excellent properties for gripping smooth transported objects such as glass and windows.
Load capacity: <500 kg
Positioning: vertical
 |
GLASS |
 |
STONE |
 |
 |
TECHNICAL TABLE
Load capacity: from 300 to 500 kg. *
Positioning: vertical
Rotation: 360°
Number of suction cups: 4 pcs. *
Suction cup size: 270 and 360 mm *
Main traverse: 650 mm *
Vacuum pump: 4 m³ / h.
Voltage: 400 V **
* depends on the model
** possible conversion to 220 V
AERO-WINDOW ADVANTAGES
Maximum compactness and optimized weight of the device thanks to the vacuum accumulator integrated into the frame.
Excellent suction properties and increased friction coefficient in the vertical position thanks to the special AERO-LIFT glass suction cups with low self-volume and special structure.
Quick conversion without tools is guaranteed thanks to plug-in connections that allow configuration with fewer or more suction cups. In addition, two of the four crossbars can be removed and adapted to different load sizes.
Grips smooth transport loads such as glass and windows
Center of gravity compensation for different transport weights thanks to the 3-hole lifting eye.
All suction cups can be switched on and off in seconds using manual butterfly valves and/or quick-change couplings.
No downtime thanks to the integrated motor protection switch, which protects the vacuum generator from winding damage.
Quick and easy maintenance: the intelligent suction cup concept allows worn suction cups to be replaced in seconds without tools.
Load rotation in the vertical direction by +/- 90° and locking every 90° using a Bowden cable.

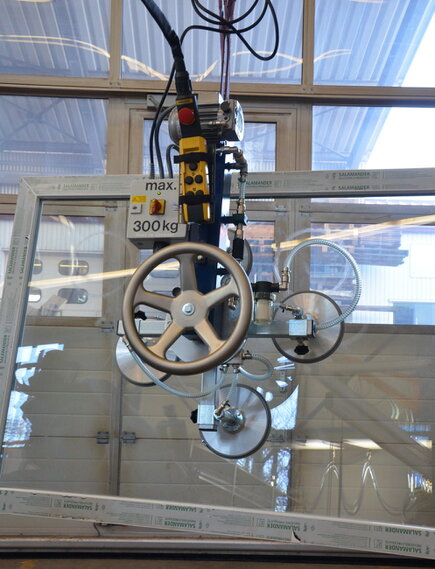

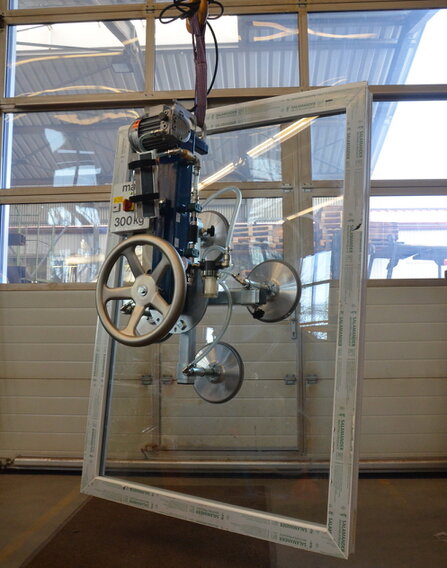

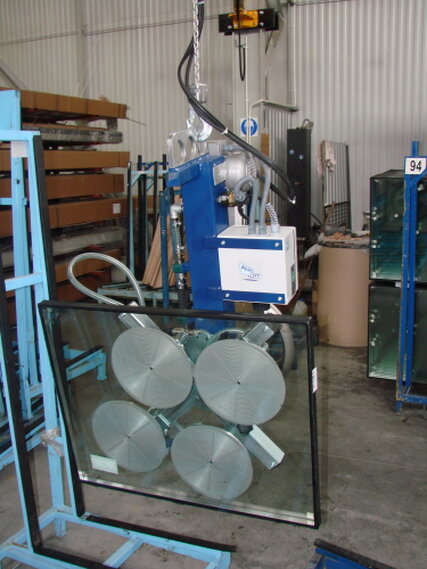

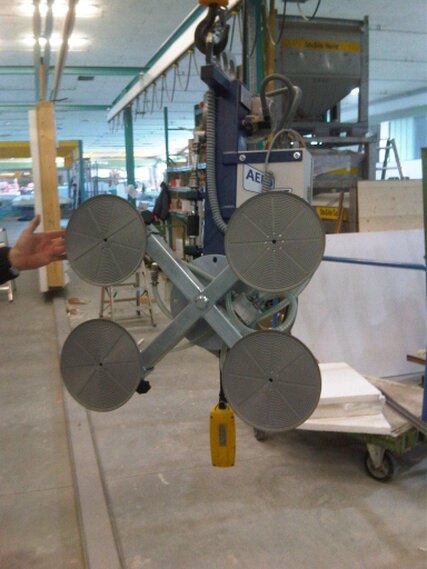

GALLERY
