AERO-VARIOWIN
Solving the problems of working with recessed installations (e.g. glass in prefabricated buildings) thanks to suction cups with depth adjustment.
Load capacity: <500 kg
Positioning: vertical
 |
GLASS |
 |
STONE |
 |
 |
TECHNICAL TABLE
Load capacity: from 250 to 500 kg. *
Positioning: vertical
Rotation: 360°
Number of suction cups: 4 pcs. *
Suction cup size: 270 by 360 mm *
Main traverse: 650 mm *
Vacuum pump: 4 m³ / h.
Voltage: 400 V **
* depends on the model
** possible conversion to 220 V
AERO-VARIOWIN ADVANTAGES
Safe storage of vacuum lifters and nozzles thanks to the transport rack included
Smaller formats can be handled thanks to the optional shorter crane suspension
Includes a frame for safe transport
Quick conversion without tools is guaranteed thanks to plug-in connections that allow configuration with fewer or more suction cups.
Quick and easy maintenance: The intelligent suction cup concept allows worn suction cups to be replaced in seconds without tools.
No downtime thanks to the integrated motor protection switch that protects the vacuum generator from winding damage.

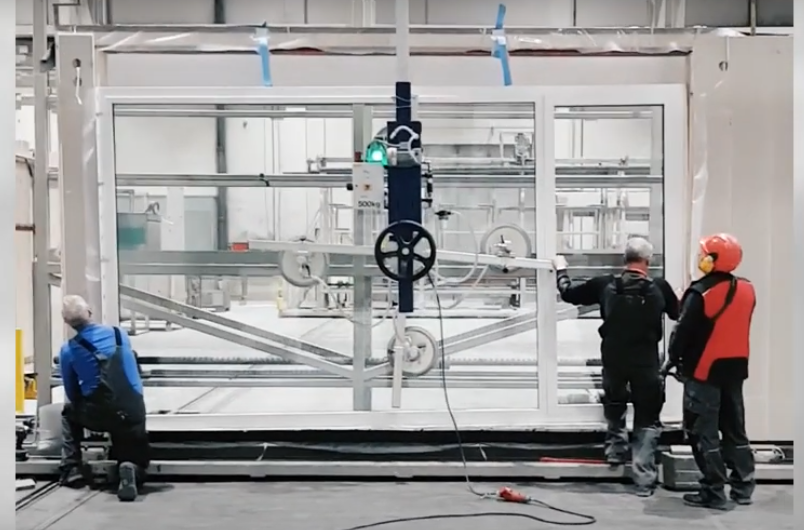

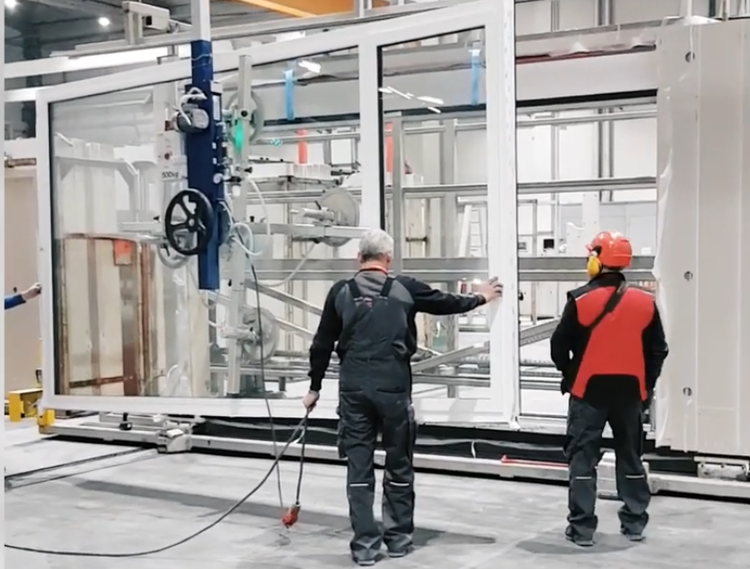

Solving glass problems in prefabricated houses
Excellent suction properties and increased friction coefficient in the vertical position thanks to special glass suction cups with a small self-volume and a special structure.
Highest safety standards thanks to integrated tandem vacuum tank mounted on both sides of the frame and additional acoustic and visual warning signals.
Possibility of handling loads with a maximum web offset of 13 cm thanks to depth-adjustable suction cups
Load rotation in the vertical direction by +/-90° and locking every 15° using a Bowden cable
Possibility of avoiding interfering contours such as soffits or frames thanks to height-adjustable suspension points
Easy transport of tall workpieces in the vertical position thanks to extra-long suspension frame
Balanced load distribution thanks to adjustable center of gravity compensation on the suspension frame
