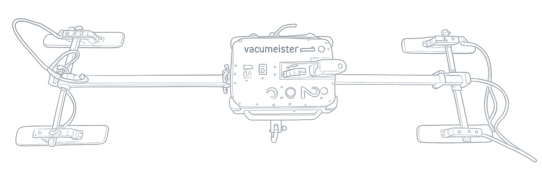

VACUMEISTER-SPF
The SPF package allows you to quickly and efficiently install facade and roofing sandwich panels up to 12 meters. Our solutions are ideal for any project, because with Vacumeister SPF you get not only reliability, but also ease of use. Forget about the difficulties - with us, installation will become easy and enjoyable!
Load capacity: <800 kg
Positioning: vertical, horizontal, 360°
 |
SANDWICH PANEL |
 |
| STONE |
 |
| METAL |
 |
 |
 |
 |
 |
TECHNICAL TABLE
Load capacity: up to 800 kg. *
Panel length: up to 12000 mm. **
Positioning: vertical, horizontal
Rotation: 360°
Fixing positions: 8
Suction cup size: 180 x 560 mm.
Number of suction cups: 4 pcs.
Crossbar insert: 1000 mm.
Crossbar: 1000 mm.
Vacuum pump: 4 m³ / h.
Number of pumps: 2 pcs.
Power supply: battery ***
* depends on the configuration
** depends on the characteristics of the sandwich panel
*** voltage of the built-in charger 220 V
VACUMEISTER ADVANTAGES
The first multi-purpose vacuum gripper is ideal for working with a variety of materials.
Versatile and robust: suitable for installing sandwich panels up to 12,000 mm long and weighing up to 600 kg.
Triple safety thanks to the dual-circuit system and double the load capacity of the entire system, as well as the reliable belt attachment. The two vacuum circuits work independently and protect each other from damage.
Maximum versatility and tool-free conversion thanks to modular and plug-in elements
Highest safety standards thanks to acoustic and visual warning signal for low battery and/or falling vacuum level
Specially designed for use on construction sites: completely weatherproof, dust and dirt resistant
Long operation and short charging times thanks to battery-powered vacuum generator
Up to 70% longer battery life thanks to intelligent pump control module.
The ideal seal for the right application: Depending on the type and surface geometry of the transported load, users can freely choose between sponge rubber or an extremely durable fully elastomer seal.
The service life is 70-80% longer than conventional products thanks to the time-tested, UV-resistant suction cups that can be replaced without tools.

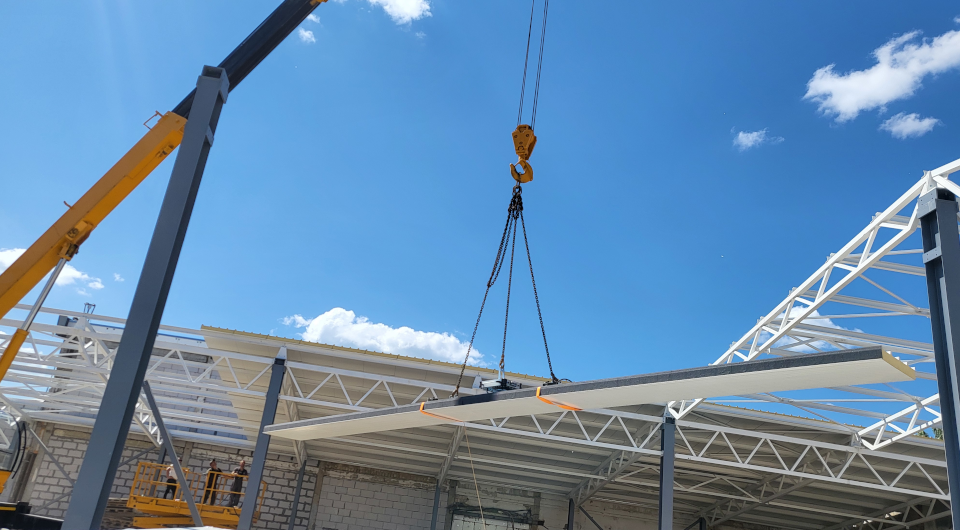

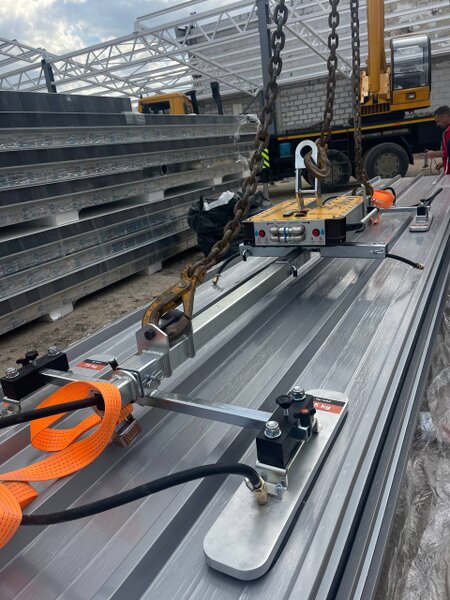

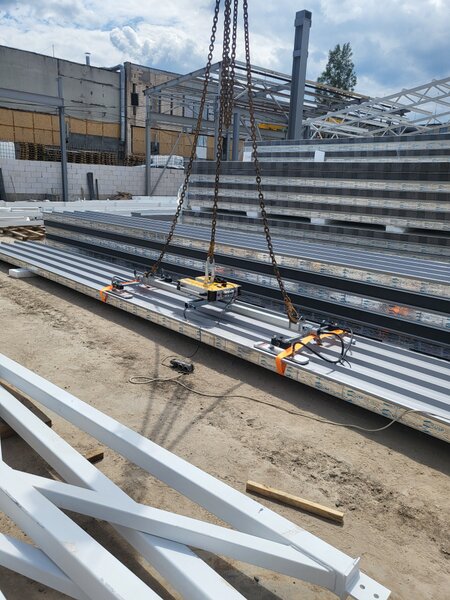

GALLERY
