AERO-TIMBER
Ideal for transporting long materials (wooden beams/boards) due to flexible handle positioning, process accuracy and short re-adjustment times.
Load capacity: <600 kg
Positioning: horizontal
 |
| WOOD |
 |
TUBE |
 |
 |
TECHNICAL TABLE
Load capacity: from 300 to 600 kg. *
Positioning: horizontal
Number of suction cups: from 2 to 4 pcs. *
Suction cup size: 180 by 560 mm *
Main traverse: from 2000 to 4000 mm *
Vacuum pump: 25 m³ / h.
Voltage: 400 V **
* depends on the model
** possible conversion to 220 V
AERO-TIMBER ADVANTAGES
Can lift long materials up to 13 m long, such as glued beams, solid structural timber and rough sawn beams.
Guaranteed safety for work and operator thanks to the large vacuum tank with intelligent signal device.
Optimally adapted to the working environment thanks to the possibility of choosing the handle position (transversely and frontally).
High process accuracy when positioning the vacuum lifter on the transported loads thanks to positioning aids on all suction cups.

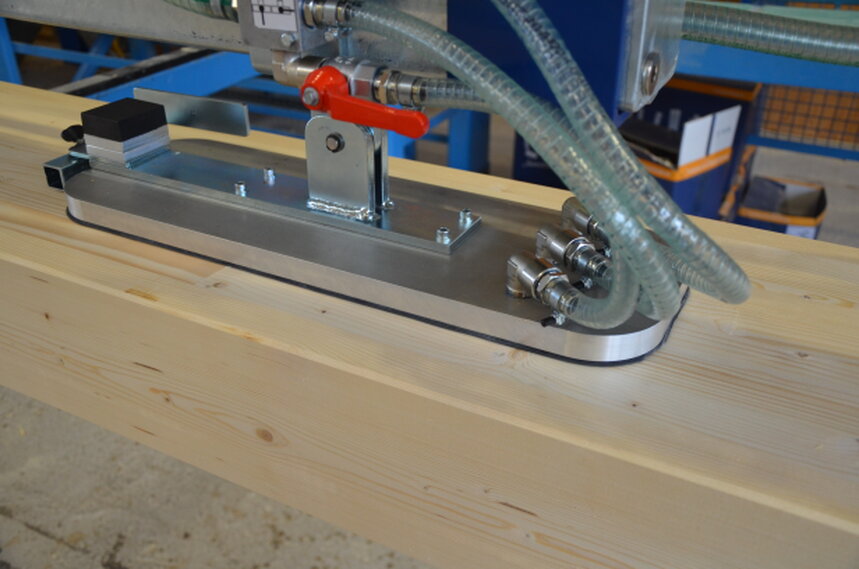

Can lift beams with a width of 80 mm and more thanks to the specially developed suction cup concept with three vacuum chambers.
Unrivalled versatility of the modular basic system with integrated water separator, which can be individually expanded with additional options.
Fast and easy maintenance: the intelligent suction cup concept allows worn suction cups to be replaced in seconds without tools.
Maximum process reliability thanks to the robust welded steel frame and crossbar construction.
