CLAD-TEC
Lightweight design and excellent gripping properties for smooth objects such as glass and windows.
Load capacity: <800 kg
Positioning: vertical, horizontal
3 000 UAH
- with VAT per day
 |
GLASS |
 |
STONE |
 |
 |
 |
 |

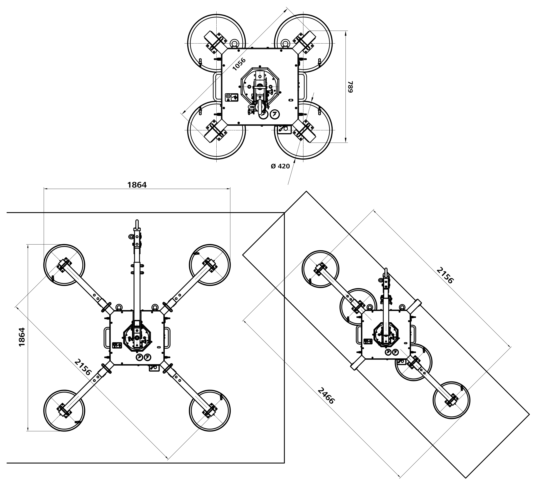

TECHNICAL TABLE
Load capacity: up to 800 kg.
Positioning: vertical, horizontal
Rotation: 360°
Number of suction cups: 4 pcs.
Number of circuits: 4
Suction cup size: 410 mm
Main traverses: 1056 mm
Vacuum pump: 4 m³ / h.
Voltage: 12 V battery
CLAD-TEC ADVANTAGES
Lightweight aluminum construction for use on a mobile crane, for both horizontal and vertical installation.
All suction cups can be switched on and off in seconds using manual butterfly valves and/or quick-change couplings.
Safe four-circuit vacuum monitoring system, for use on construction sites, ensures safety when used in open spaces.
Load rotation in the vertical direction by 360° and locking every 45°
The energy-saving vacuum-controlled system provides up to 300 gripping cycles with just one battery charge.
Excellent suction properties and increased friction coefficient in the vertical position thanks to special glass suction cups with low self-volume and special structure.
Quick conversion without tools is guaranteed thanks to plug-in connections that allow configuration with fewer or more suction cups.

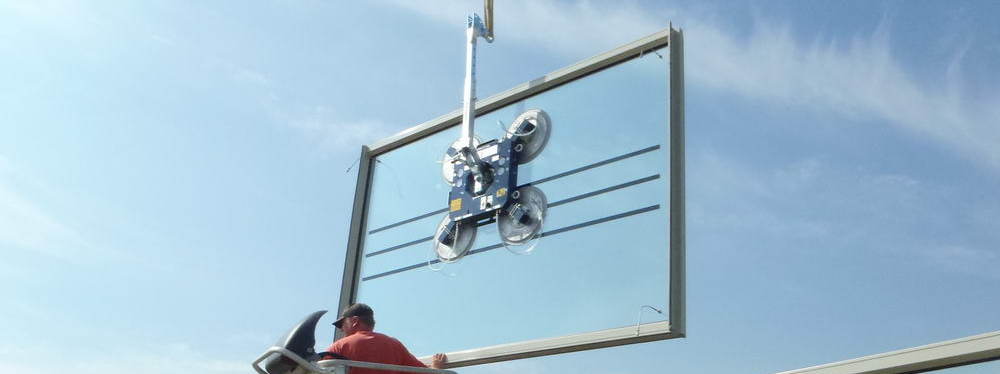

Grips smooth loads such as glass and windows
