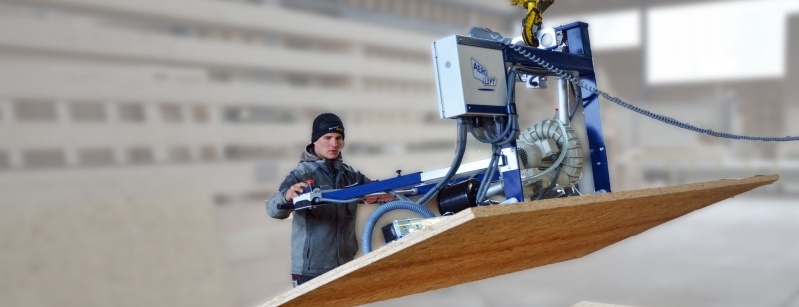

AERO-PORO
Ideal for processing board materials (e.g. MDF or OSB), both closed and breathable.
Load capacity: <900 kg
Positioning: 90°
 |
| WOOD |
 |
SANDWICH PANEL |
 |
 |
 |
TECHNICAL TABLE
Load capacity: from 300 to 900 kg. *
Positioning: 90°
Number of suction cups: from 1 to 3 pcs. *
Suction cup size: 420 by 820 mm *
Main traverse: 2000 mm *
Vacuum pump: 125 m³ / h.
Voltage: 400 V **
* depends on the model
** possible conversion to 220 V
AERO-PORO ADVANTAGES
Can work with any panel material, whether it is breathable or closed, e.g. MDF or OSB panels
Maximum user safety and extremely long service life thanks to powerful vacuum fan with overrunning flywheel
Perfect suction power and extremely long service life thanks to unique sealing concept
No downtime thanks to integrated motor protection switch that protects the vacuum cleaner from winding damage.
Easy replacement and rotation (90°) of the suction cups thanks to mechanical connection with adapter plates made of galvanized steel
Easy suction and release of heavy panels at the touch of a button on the control panel
Smooth and stepless rotation possible as well as horizontal control thanks to additional gearbox with 90° rotation
Maximum process reliability thanks to robust welded steel frame and crossbar construction
