CLAD-MAN
For XXL tasks on the construction site: allows stacking of material weighing up to 800 kg and a length of 26 m.
Load capacity: <800 kg
Positioning: vertical, horizontal
 |
SANDWICH PANEL |
 |
| METAL |
 |
 |
 |
 |
TECHNICAL TABLE
Load capacity: from 400 to 800 kg. *
Panel length: up to 26000 mm *
Positioning: vertically, horizontally
Number of suction cups: from 8 to 12 pcs. *
Suction cup size: 140x650 mm
Main crossbar: from 1000 to 16000 mm *
Transverse crossbars: 1000 mm
Vacuum pump: 8 m³ / h.
Power supply: battery **
* depends on the configuration
** built-in charger voltage 220 V
CLAD-MAN ADVANTAGES
The big brother of the CLAD-BOY with a maximum load capacity of up to 800 kg. and a length of up to 26 m.
Convenient transport and storage options for all attachments and the vacuum lifter thanks to the specially developed STORE-MAN storage unit
Versatile and robust: suitable for both roof and wall mounting
Long operation and short charging times thanks to battery-powered vacuum generator
Maximum versatility and tool-free conversion thanks to modular and pluggable, hot-dip galvanized main and cross beams
Highest safety standards thanks to acoustic and visual warning signal for low battery and/or falling vacuum level
Specially designed for use on construction sites: completely weatherproof, extremely impact-resistant and with a low dead weight
Up to 70% longer battery life thanks to the standard Ecomatic pump control module, which provides intelligent activity control measured by the vacuum level.
Triple safety thanks to the dual-circuit system and double the load capacity of the entire system as well as the reliable belt attachment. The two vacuum circuits work independently and protect each other from damage.
The ideal seal for the respective application: depending on the type and surface geometry of the transported load, users are free to choose between sponge rubber or an extremely durable fully elastomer seal.
70-80% longer service life than conventional products thanks to the time-tested, UV-resistant suction cups that can be replaced without tools.

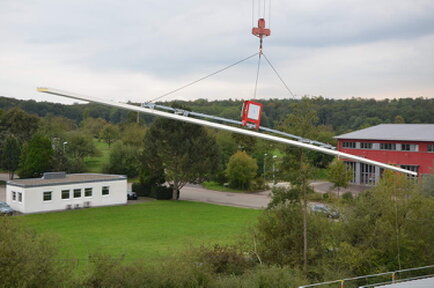

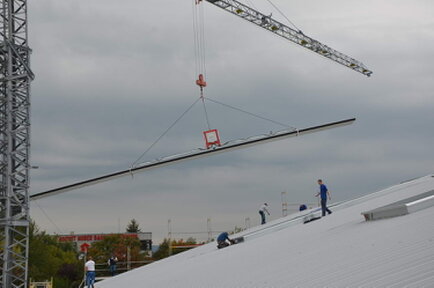

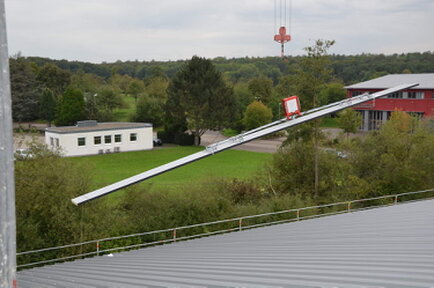

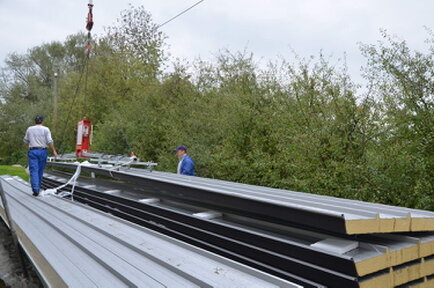

GALLERY
