CRAWLER ER
A machine that is characterized by maneuverability on any terrain, as well as dynamic alignment of the entire manipulator along both horizontal axes.
Load capacity: <1000 kg
Positioning: vertical, horizontal, 360°
 |
GLASS |
 |
| STONE |
 |
| METAL |
 |
 |
 |
 |
 |

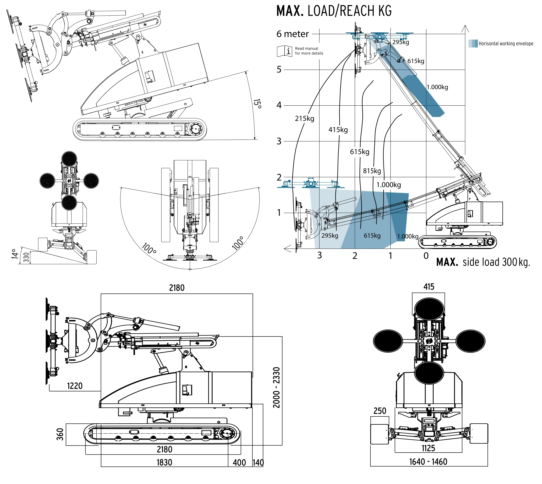

TECHNICAL TABLE
Max. load capacity: 1000 kg.
Own weight: 2980 kg.
Maximum lifting height: 6050 mm.
Width: 1460 mm.
Hydraulic side shift: 75 mm.
Hydraulic precision lift: 200 mm.
Front rotation: 360 °
Battery: 48 V / 420 Ah
WINLET CRAWLER ADVANTAGES
Dynamic leveling
The manipulator leveling is fully automatic when using the dynamic leveling system function, even on slopes and very uneven terrain.
The Winlet 1000 Crawler ER automatically and simultaneously adapts to longitudinal slopes of up to 15° (27%) and transverse slopes of up to 14° (25%) simultaneously, ensuring optimal safety and extremely efficient transportation or installation.
Surface traction and low ground pressure

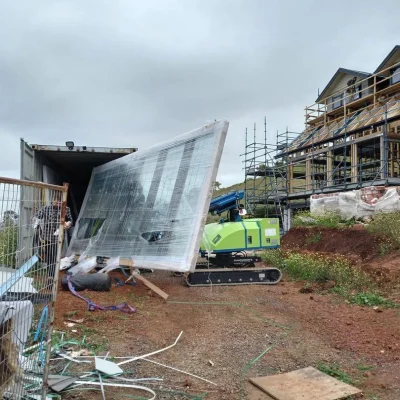

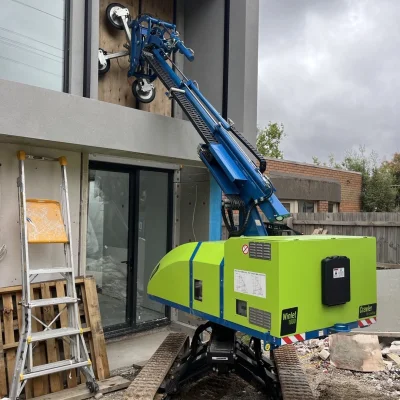

The Winlet 1000 Crawler ER can operate on various types of terrain, such as stairs, providing maximum maneuverability and precision even in the narrowest spaces, with minimal ground pressure – and without the need for any outriggers at any time.
