CLAD-BOARD
Universal gripper for quick installation of sandwich panels, including roof panels and glass.
Load capacity: <400 kg
Positioning: vertical, horizontal
3 000 UAH
- with VAT per day
 |
GLASS |
 |
SANDWICH PANEL |
 |
| STONE |
 |
 |
 |
 |

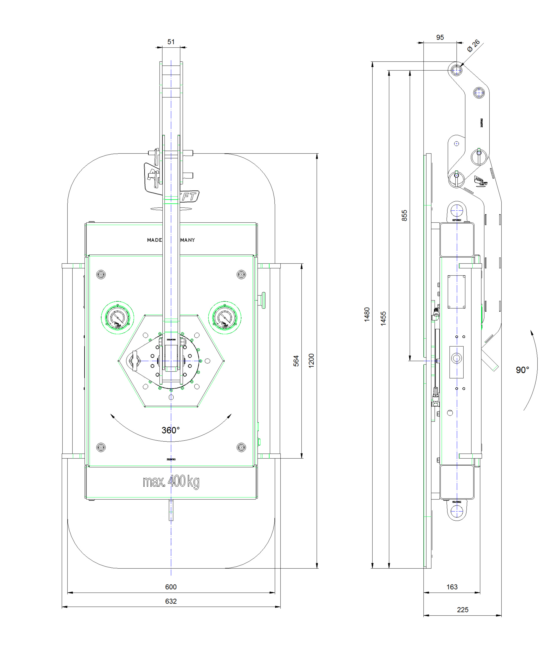

TECHNICAL TABLE
Vantage capacity: up to 400 kg.
Positioning: vertical, horizontal
Rotation: 360°
Number of suction cups: 1 pc. *
Number of contours: 2
Sucker size: 1200x600 mm
Vacuum pump: 4 m³/year.
Voltage: battery 24 V
* keep in the kit
CLAD-BOARD ADVANTAGES
The suspension is adjusted to ensure maximum comfort.
The charging device, when inserted into the suction cup, charges the battery for about six years, after which you can work with it all day without problems.
The double-circuit system is independent, the vacuum pump is equipped with a vacuum control system.
The vacuum plate is large and can be replaced with plates for installing roofing panels.
Rotate vertically 360° and fix skin 90°.
