AERO-90°
Smooth, jerk-free rotation of transported loads from 0° to 90°.
Load capacity: <1000 kg
Positioning: 90°
 |
| METAL |
 |
SANDWICH PANEL |
 |
GLASS |
 |
| STONE |
 |
| SOLAR PANEL |
 |
 |
TECHNICAL TABLE
Load capacity: from 125 to 1000 kg. *
Positioning: 90°
Number of suction cups: from 4 to 8 pcs. *
Suction cup diameter: from 170 to 350 mm *
Main traverse: from 2000 to 3000 mm *
Transverse traverses: 1000 mm
Vacuum pump: 4 m³ / h.
Voltage: 400 V **
* depends on the model
** possible conversion to 220 V
AERO-90° ADVANTAGES
Smooth and infinitely variable rotation from 0° to 90° thanks to electric linear drive
Maximum process reliability thanks to robust welded steel frame and crossbar construction
Damage-free and gentle transport thanks to high-quality, fully elastomeric seals with an extremely long service life
No downtime thanks to integrated motor protection switch that protects the vacuum generator against winding damage.
Unrivalled versatility of the modular basic system, which can be individually expanded with additional options
Guaranteed operational and operator safety thanks to the large vacuum tank with intelligent signal device
Low operating costs thanks to the energy-efficient vacuum generator and the additional pump control module, which perfectly regulates the operation of the vacuum generator.
Fast and easy maintenance: The intelligent suction cup concept allows worn suction cups to be replaced in seconds, practically without tools.
Short set-up times for different transport sizes thanks to suction cups that can be individually locked using manual flap valves (already included in the basic package)

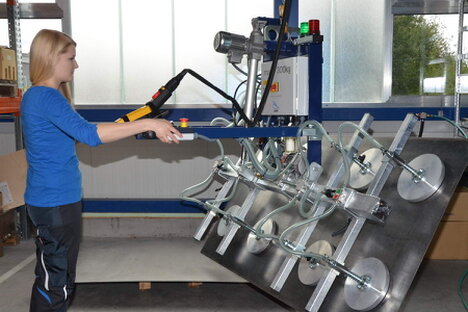

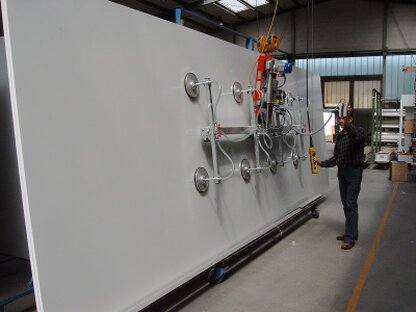

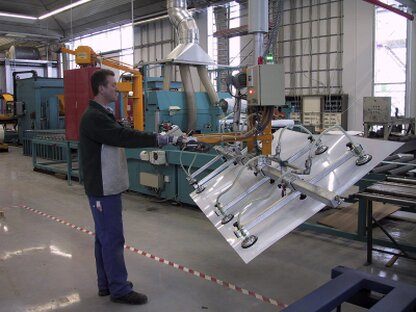

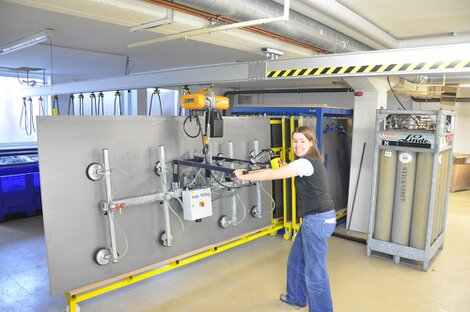

GALLERY
